- Place of Origin: Changsha
- Brand Name: SANY
- Model Number: STC500

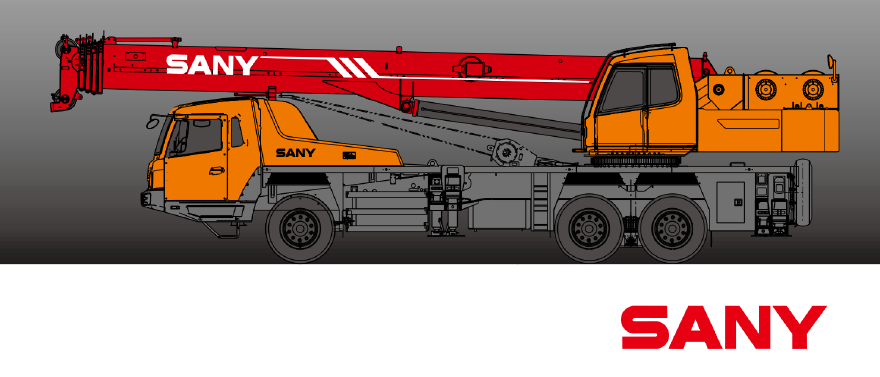

Sany STC500 truck crane is designed with five-section boom that is made of high strength steel structure and optimized U-shaped cross section. Its maximum lifting capacity is 50 ton, full-extended boom length of 43m.
Efficient & Unique Hydraulic System
Load feedback and constant power control of the 50 ton truck crane is applied to provide strong lifting capacity and good micro-mobility. Unique steering buffer design is adopted to ensure stable braking operation.
Excellent Traveling Performance
Double-axle drive is used to provide good trafficability and comfortableness under complex road condition; engine has the multimode power output function, which reduces power consumption; the use of tipping over early-warning technology provides high stable and safe operation.
Intelligent Electronic Control
Self-developed controller SYMC special for engineering machinery is configured. The adoption of CAN-bus full-digital network control technology ensures stable control signal, simple harness, and high reliability. Timely feedback of data information can achieve the monitoring of the overall working status in real time.
The Load Moment Limiter
Equipped with the comprehensive intelligent protection system is used with accuracy within 5%. The adoption of comprehensive logic and interlock control system ensures more safe and reliable operation.
More Safe Devices
Main and auxiliary winches are equipped with over roll-out limiter to prevent over rolling-out of wire rope.
Boom and jib ends are equipped with height limiters respectively to prevent over-hoisting of wire rope.
Hydraulic system is configured with the balance valve, overflow valve and two-way hydraulic lock etc., to ensure stable and reliable operation.
Exclusive Advisor Mr.Raymond
E-mail: sanyraymond@163.com
wechat: zirurocky
whatsapp: 86 186 6378 8576
- Place of Origin: Changsha
- Brand Name: SANY
- Model Number: STC500
Type | Item | Parameter | |
Capacity | Max. lifting capacity | 501 | |
Dimensions | Overall length | 13750 mm | |
Overall width | 2750 mm | ||
Overall height | 3800 mm | ||
Axle distance | Axle-1,2 | 1450 mm | |
Axle-2,3 | 4000 mm | ||
Axle-3,4 | 1350 mm | ||
Weight | Overall weight | 42000 kg | |
Axle load | Axle load-1,2 | 16000 kg | |
Axle load-3,4 | 26000 kg | ||
Rated power | 250kW/2100rpm | ||
Rated torque | 1425 N.m/1200 rpm | ||
Traveling | Max.traveling speed | 85 km/h | |
Turning radius | Min.turning radius | 12 m | |
Min.turning radius of boom head | 14.5 m | ||
Wheel formula | 8x4 | ||
Min.ground clearance | 295 mm | ||
Approach angle | 18° | ||
Departure angle | 12° | ||
Max.gradeability | 40% | ||
Fuel consumption per 100km | m45L | ||
Main Performance Data | Temperature range | -20 °C ~ 45 °C | |
Min.rated range | 3 m | ||
Tail slewing radius of swingtable | 4 m | ||
Boom section | 5 | ||
Boom shape | U-shaped | ||
Max.lifting moment | Base boom | 1774 kN-m | |
Full-extend boom | 840.8 kN-m | ||
Full-extend boom jib | 318 kN-m | ||
Boom length | Base boom | 11.5 m | |
Full-extend boom | 43 m | ||
Full-extend boom jib | 59 m | ||
Outrigger span (Longitudinalxlransversal) | 6 x 7.2 m | ||
Jib offset | 30。 | ||
Working speed | Max.single rope lifting speed of main winch (no load) | 130 m/min | |
Max.single rope lifting speed of auxiliary winch (no load) | 130 m/min | ||
Full extension/retraction time of boom | 100/120 s | ||
Full lifting/descending time of boom | 80/80 S | ||
Slewing speed | 0-2.0 r/min | ||
