- Place of Origin: Changsha
- Brand Name: SANY
- Model Number: STC250H

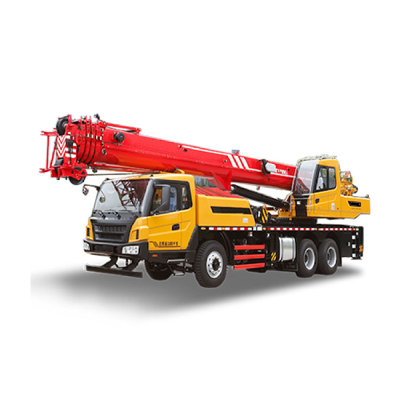

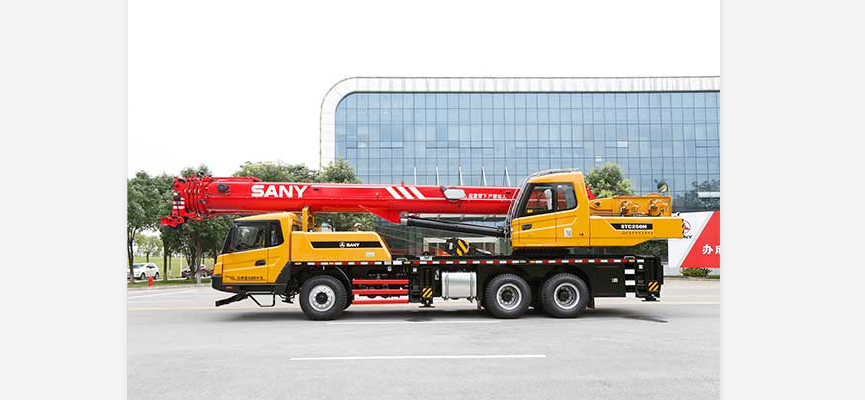

STC250H truck crane achieves intelligent electronic control. Self-developed controller SYMC special for engineering machinery is configured. The adoption of CAN-bus full-digital network control technology ensures stable control signal, simple harness, and high reliability. Timely feedback of data information can achieve the monitoring of the overall working status in real time.
Powerful Lifting Capacity
STC250H 25 ton crane has five-section boom of high strength steel structure and optimized U-shaped cross section with max.lifting capacity of 25t, full-extended boom length of 33.5m, max.lifting height including jib of 42m, reduce weight and improve safety significantly.
Jib mounting angles are 0°, 15°, and 30°, which ensure fast and convenient change-over between different operating conditions so as to improve working efficiency of the machine.
Efficient & Adjustable Hydraulic System
Load sensitive variable plunger pump is applied to provide real time adjustment of pump displacement, high-accuracy flow control, strong lifting capacity and good micro-mobility. Unique steering system is applied to ensure stable braking operation.
Excellent Traveling Performance
Double-axle drive is applied to provide good mobility. Trafficability and comfortableness under the complex road condition is improved with reliable traveling performance;
Engine has the multimode power output function, which reduces power consumption.
Load Moment Limiter
Equipped with the comprehensive intelligent protection system is used with accuracy within 3%. The adoption of comprehensive logic and interlock control system ensures more safe and reliable operation.
More Safe Devices
Main and auxiliary winches are equipped with over roll-out limiter to prevent over rolling-out of wire rope.
Boom and jib ends are equipped with height limiters respectively to prevent over-hoisting of wire rope.
Hydraulic system is configured with the balance valve, overflow valve and two-way hydraulic lock etc., to ensure stable and reliable operation.
Exclusive Advisor Mr.Raymond
E-mail: sanyraymond@163.com
wechat: zirurocky
whatsapp: 86 186 6378 8576
- Place of Origin: Changsha
- Brand Name: SANY
- Model Number: STC250H
Type | Item | Parameter | |
Capacity | Max. lifting capacity | 25t | |
Dimensions | Overall length | 12700mm | |
Overall width | 2500mm | ||
Overall height | 3550mm | ||
Axle distance | Axle-1,2 | 4325mm | |
Axle-2,3 | 1350mm | ||
Weight | Overall weight | 33000kg | |
Axle load | Axle load-1 | 7000kg | |
Axle load-2,3 | 26000kg | ||
Rated power | 213 kW/2100 rpm | ||
Rated torque | 1050N.m/1300rpm | ||
Traveling | Max.traveling speed | 80km/h | |
Turning radius | Min.turning radius | 11m | |
Min.turning radius of boom head | 12m | ||
Wheel formula | 6x4 | ||
Min.ground clearance | 220mm | ||
Approach angle | 17° | ||
Departure angle | 12° | ||
Max.gradeability | 38% | ||
Fuel consumption per 100km | m40L | ||
Main Performance Data | Temperature range | -30 °C~ 十 60 °C | |
Min.rated range | 3m | ||
Tail slewing radius of swingtable | 3.37m | ||
Boom section | 5 | ||
Boom shape | U-shaped | ||
Max.lifting moment | Base boom | 980 kN-m | |
Full-extend boom | 470 kN-m | ||
Full-extend boom jib | 378kN-m | ||
Boom length | Base boom | 10.5m | |
Full-extend boom | 39.5 m | ||
Full-extend boom jib | 47.5m | ||
Outrigger span (Longitudinal*transversal) | 5.3 x 6.2m | ||
Jib offset | 0°,15°, 30° | ||
Working speed | Max.single rope lifting speed of main winch (no load) | M120m/min | |
Max.single rope lifting speed of auxiliary winch (no load) | M120m/min | ||
Full extension/retraction time of boom | 105/120 s | ||
Full lifting/descending time of boom | 45 / 70 S | ||
Slewing speed | (0~2)r/min | ||
Aircondition | Aircondition in up cab | Cooling and Heating | |
Aircondition in low cab | Cooling and Heating | ||
