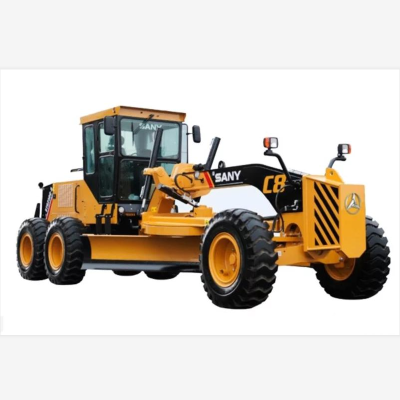

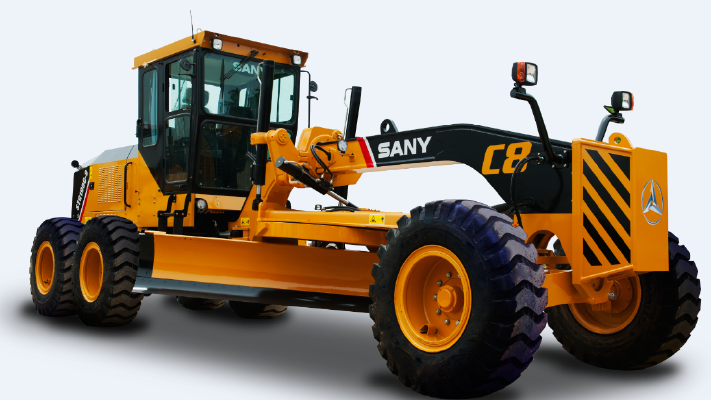

230hp Mechanical Motor Grader STG230C-8

230hp Mechanical Motor Grader STG230C-8

  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets per Month
  • Port: Any Main Port in China
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:1994-11-22
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  Changsha
  • Brand Name:  SANY
  • Model Number:  STG230C-8

Features
Power system: Sany Daoz 170kW mining heavy-duty engine, using variable power and fuel-saving technology, strong power.

Transmission system: ZF 6WG-200 power shift gearbox, maintenance-free slewing bearing rear axle, integral wheel rim, reinforced heavy-duty roller chain, front 4 rear 2 disc brakes

Working device: maintenance-free fully-sealed slewing bearing working device, no daily adjustment, no wearing parts, and reliability greater than 10000h.

Blade: 13-foot blade, unique left-leading structure, the blade leads to the cylinder without exposure, the cylinder is not easy to be damaged, and the reliability is high.
Cab: ROPS / FOPS safe cab, with left and right sliding windows, heating and cooling air conditioner, small fan, cigarette lighter, mechanical suspension seat.
Electrical system: 7-inch LCD liquid crystal display, multi-parameter and multi-language display, all-round LED work lights.
Maintenance: Self-diagnosis of faults, automatic reminder function for maintenance, 350-liter large oil tank is arranged at the rear of the machine, easy to achieve ground refueling.

Engine: reliable heavy load, energy saving
Sany and Deutz cooperated with D07 high-pressure common rail heavy-duty engine specially developed for construction machinery, with strong power.
 Variable power (VHP) technology, three working conditions of light load, medium load and heavy load match different power curves, so that the machine always works in a low fuel consumption area.
Rear axle: slewing bearing structure rear axle for mining graders
 The slewing bearing structure, instead of the traditional copper sleeve structure, is easy to maintain, has high transmission accuracy, and has a service life of more than 10000h.
 Reinforced high waist plate chain, No-SPIN automatic anti-skid differential, two-point support bridge arm structure.
 Integral wheel rim: the wheel axle and the hub are integrally forged, and the bearings are lubricated with oil for higher reliability.
 Disc brake: 2 disc brakes in front 4 and rear, shorter distance than drum brake, high safety and low cost.
Working device: fully sealed slewing bearing structure specially designed for mine
 Fully sealed structure, foreign objects such as sand and dust are not easy to invade, and the reliability is greater than 10000h.
 Slewing bearing structure (similar to rolling bearing), no need to adjust the whole life, high working accuracy.
 Easy maintenance, no wearing parts, and low cost of use.
Blade: Left-leading structure and high-performance wear plate
 Left-leading blade structure: The blade extends to the right, the piston rod of the oil cylinder is hidden in the cylinder barrel, and the protection level is high.
 Super large blade swaying capacity: large displacement operation pump and large torque rotary motor, large rotary torque of blade, fast rotary speed and high operating efficiency.
 High-performance guide rail wear plate: add blade protection plate, high wear-resistant copper alloy guide rail wear plate, life is 2 times that of ordinary copper material
Create a safe and comfortable driving experience
 ROPS / FOPS cab: An anti-tipping and falling-proof cab certified by international standards ISO3349 and ISO3471, with a high safety level.
 Car-level configuration: luxury interior, standard heating and cooling air conditioner, electric fan, radio, stereo, tea cup holder, cigarette lighter (same car USB charging port)
 Humanized design: left and right sliding window design, sun visor, sun blind, double rearview mirror, mechanical suspension type seat with headrest and high backrest, adjustable front, back, up and down
 LED work lights, all-round three-dimensional layout, no blind spots at night.
Easy maintenance
 High-end SYCD LCD display.
 The double-side large opening engine compartment door provides large maintenance space and easy access for daily maintenance.
 Commonly used electrical components are arranged centrally, and electrical circuit maintenance is convenient.
 Automatic fault diagnosis and maintenance prompts, fully automatic monitoring of engine, gearbox and other working conditions.
 The 350L super large fuel tank is arranged behind the rack, which is convenient for fuel filling.
 A variety of filter elements and wearing parts are randomly presented, and 27 brand repair tools are provided.



Exclusive Advisor Mr.Raymond

E-mail: sanyraymond@163.com

wechat: zirurocky

whatsapp: 86 186 6378 8576


  • Place of Origin:  Changsha
  • Brand Name:  SANY
  • Model Number:  STG230C-8

Model

STG230C-8

Engine

SANY

D07S3T5

Tier

Rated Power /Rev Speed

180kW2200rpm

Max. Torque/Rev Speed

925N·m/1500rpm

Dimensions (Standard)

9300x2765x3310mm

Operating Weight

16500kg

Min. Turning Radius

7.3m

Hydraulic System Max. ftessure

18MPa

Transmsston System Pressure

1.3-1.7MPa

Front Wheel Turning Angle

±45°

Front Wheel Tit Angle

±17°

Oscilation Angle of FrontAxle

±16°

Oscilation Angle oflandem Box

±15°

Ground Clearance at Rear Axle

410mm

Blade Range

Moldboard Width x Arc Radius

(14ft)4270x620mm

Max. Lift above Ground

450mm

Max. Depth of Cut

640mm

Max. Blade Pcsitcn Angle

±90°

Blade Tip Range

Forward25° Backward75°

Circle Rotation

360°
