- Place of Origin: Changsha
- Brand Name: SANY
- Model Number: SSR220AC-8H

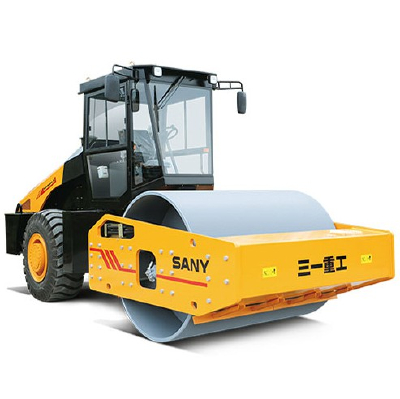

SANY Road Roller SSR220AC-8H
Advantages
1. Heavy duty single drum vibratory roller.
2. Low noise.Maximum visibility. Comfortable driving cabin .
3. Adopt top brand engine, pump, vibratory bearing.G reat compaction performance.
SSR220AC-8 road roller useing water wheel type lubrication on the vibratory bearing extends the bearing life up to 5,000 hours. The hydraulic system of the 200hp road roller contains three stage filtration.
Extended Service Life
The use of water wheel type lubrication on the vibratory bearing extends the bearing life up to 5,000 hours.
The engine air filter is raised and the air is filtered twice to protect the engine.
The hydraulic system contains three stage filtration.
Higher Compaction Efficiency
10% greater excitation force than other products in the same category resulting in 16.7% greater production.
Safety First Design
Rounded bumpers front and rear
Large rear glass and sloped hood for greater visibility
Comfortable Operation
Cab mounted on vibration damping mounts
Cab climate control
Operator control forces have been reduced
Exclusive Advisor Mr.Raymond
E-mail: sanyraymond@163.com
wechat: zirurocky
whatsapp: 86 186 6378 8576
- Place of Origin: Changsha
- Brand Name: SANY
- Model Number: SSR220AC-8H
Model | Unit | SSR220AC-8 |
Operating weight | kg | 22000 |
Load applied on front drum | kg | 10000 |
Static linear pressure | N/cm | 470 |
Speed range | km/h | |
Gear I | 2.69 | |
Gear II | 5.25 | |
Gear III | 11.12 | |
Theoretical gradeability | % | 30 |
Min. external turning radius | mm | 6500 |
Steering angle | ° | ±33 |
Oscillating angle | ° | ±11 |
Vibration frequency(high/low) | Hz | 33/28 |
Nominal amplitude (high/low) | mm | 1.9/0.95 |
Exciting force (high/low amplitude) | kN | 353/245 |
Drum width | mm | 2130 |
Drum Diemeter | mm | 1600 |
Engine model | Shaihai Diesel Engine SC8D175.2G2B1 | |
Max. power | kW | 128@1800r/min |
Engine oil consumption | g/kW.h | 205 |
Hydraulic oil tank capacity | L | 170 |
Fuel tank capacity | L | 310 |
