- Place of Origin: Changsha
- Brand Name: SANY
- Model Number: STG210C-8

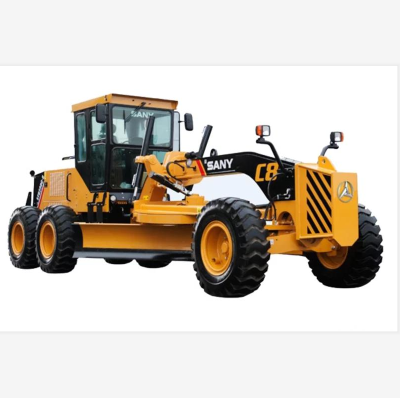

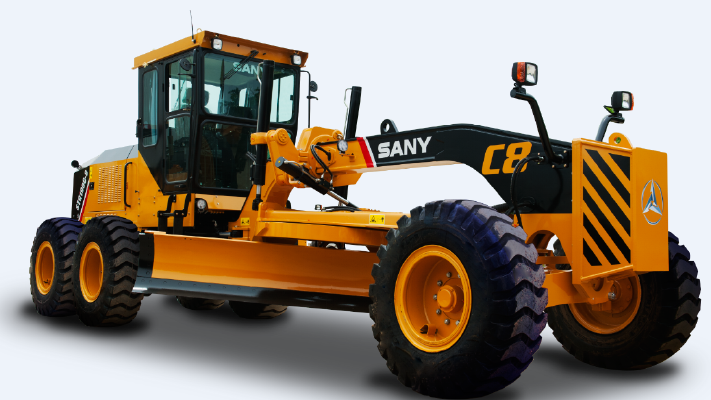

SANY Motor Grader STG210C-8 210HP
1.Excellent maneuverability
Small turning radius and its excellent maneuverability delivers versatile working performance.
2.Easy operation
Stepless speed, easy operation and comfortable operation environment help improve working efficiency.
3.Strong power
Real axle with anti-slippery NO-SPIN differential lock ensure of same rotating speed of both left and right rear drive wheels, enhancing operation power.
4.Reliable operating devices
Strengthened moldboard and rigid wear-resistant blade help prolong the service life.
5.Serviceability
Maintenance and service points are centralized positioned to facilitate maintenance.
Sany STG210C-8 motor grader is featured by the hydraulic drive, stepless speed change, and simplified operation. The 160hp motor grader with German fuel injection leads to low exhaust emissions
Exclusive Advisor Mr.Raymond
E-mail: sanyraymond@163.com
wechat: zirurocky
whatsapp: 86 186 6378 8576
- Place of Origin: Changsha
- Brand Name: SANY
- Model Number: STG210C-8
Model | STG210C-8 | |
Engine | Wechai | |
WP6G210E330 | ||
Tier Ⅲ | ||
Rated Power /Rev Speed | 154kW/2200nm | |
Max. Torque/Rev Speed | 900N·m/1600rpm | |
Dimensions (Standard) | 9300 x2765x 3310mm | |
Operating Weight | 16000kg | |
Min. Turning Radius | 7.3m | |
Hydraulic System Max. ftessure | 18MPa | |
Transmsston System Pressure | 1.3-1.7MPa | |
Front Wheel Turning Angle | ±45° | |
Front Wheel Tit Angle | ±17° | |
Oscilation Angle of FrontAxle | ±16° | |
Oscilation Angle oflandem Box | ±15° | |
Ground Clearance at Rear Axle | 410mm | |
Blade Range | Moldboard Width x Arc Radius | (12ft)3660x620mm |
Max. Lift above Ground | 450mm | |
Max. Depth of Cut | 640mm | |
Max. Blade Pcsitcn Angle | ±90° | |
Blade Tip Range | Forward25° Backward75° | |
Circle Rotation | 360° | |
