- Place of Origin: Changsha
- Brand Name: SANY
- Model Number: STG190C-8

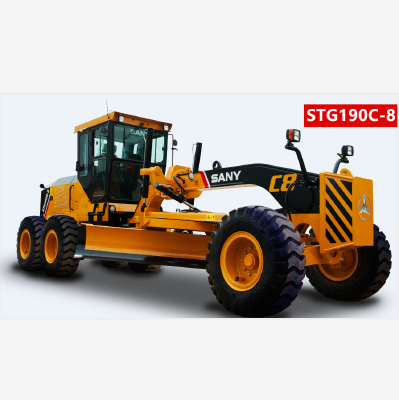

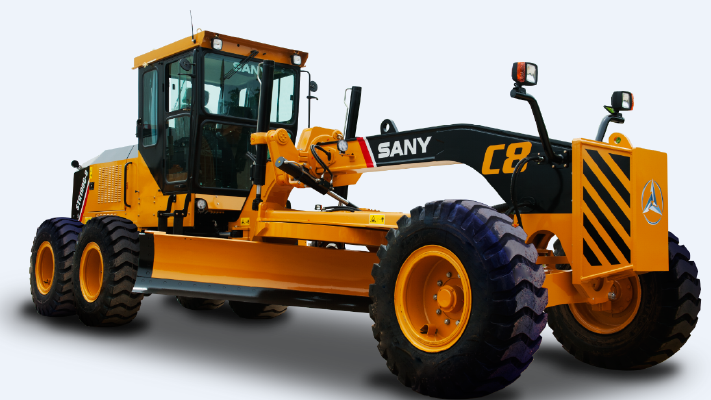

Widely Use STG190C-8 Scraping Grader Mini Motor Grader
Reliable, efficient and comfortable
High efficiency and energy saving: heavy-duty engine and variable power technology
Reliable load: slewing bearing structure and rear axle
User-friendly design: safe and comfortable driving experience
Easy to use: easy maintenance and low cost of use
Powerful, energy efficient
• Weichai/power power high-power heavy-duty engine with strong power.
• Variable power (VHP) technology, light load, medium load, heavy load three working conditions match different power curves, make machine
The machine always works in the lowest fuel consumption area.
Slewing bearing structure working device and large rear axle
• The working device is a fully sealed slewing bearing structure with high precision, easy maintenance and low cost of use.
The life span is greater than 10000h.
• The rear axle is a slewing bearing structure, which replaces the traditional copper sleeve structure, which is easy to maintain and has high transmission precision.
Life expectancy is greater than 10,000 hours.
• The front 4 rear 2 disc brakes have a shorter braking distance than the drum brakes, high safety and low maintenance costs.
Easy maintenance
• High-end SYCD LCD display in multiple languages.
• Double-sided, high-opening engine door with large maintenance space and easy access for routine maintenance.
• Commonly used electrical components are centrally arranged and electrical wiring is easy to access.
• Automatic fault diagnosis and maintenance tips, fully automatic monitoring of engine, gearbox and other working conditions.
• The 350L oversized fuel tank is placed behind the rack for easy fuel filling.
• A variety of filter cartridges and consumables, 27 on-board repair tools are available.
Safe and comfortable driving experience
• ROPS/FOPS safe cab, car-class interior, air conditioning, electric fan, radio,
Audio, teacup holder, cigarette lighter (same car USB interface).
• Left and right sliding windows, sun visors, sun shades, double rear view mirrors, high back mechanical suspension with headrests
Seat, adjustable up front and rear.
• LED work lights, all-dimensional layout, no blind spots for night illumination.
Exclusive Advisor Mr.Raymond
E-mail: sanyraymond@163.com
wechat: zirurocky
whatsapp: 86 186 6378 8576
- Place of Origin: Changsha
- Brand Name: SANY
- Model Number: STG190C-8
Model | STG190C-8 | |
Engine | Wechai | |
WP6G200E330 | ||
Tier Ⅲ | ||
Rated Power /Rev Speed | 147kW2200rpm | |
Max. Torque/Rev Speed | 900N·m/1600rpm | |
Dimensions (Standard) | 9020x2765x3310mm | |
Operating Weight | 15600kg | |
Min. Turning Radius | 7.3m | |
Hydraulic System Max. ftessure | 18MPa | |
Transmsston System Pressure | 1.3-1.7MPa | |
Front Wheel Turning Angle | ±45° | |
Front Wheel Tit Angle | ±17° | |
Oscilation Angle of FrontAxle | ±16° | |
Oscilation Angle oflandem Box | ±15° | |
Ground Clearance at Rear Axle | 410mm | |
Blade Range | Moldboard Width x Arc Radius | (12ft)3660x620mm |
Max. Lift above Ground | 450mm | |
Max. Depth of Cut | 640mm | |
Max. Blade Pcsitcn Angle | ±90° | |
Blade Tip Range | Forward25° Backward75° | |
Circle Rotation | 360° |
