- Place of Origin: Changsha
- Brand Name: SANY
- Model Number: STG170C-8

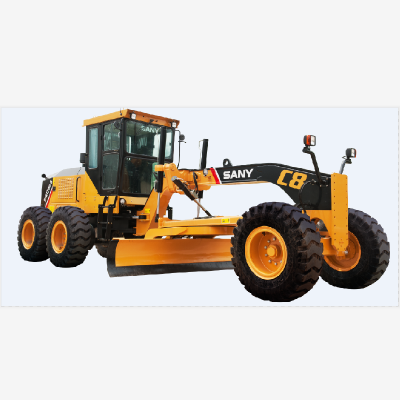

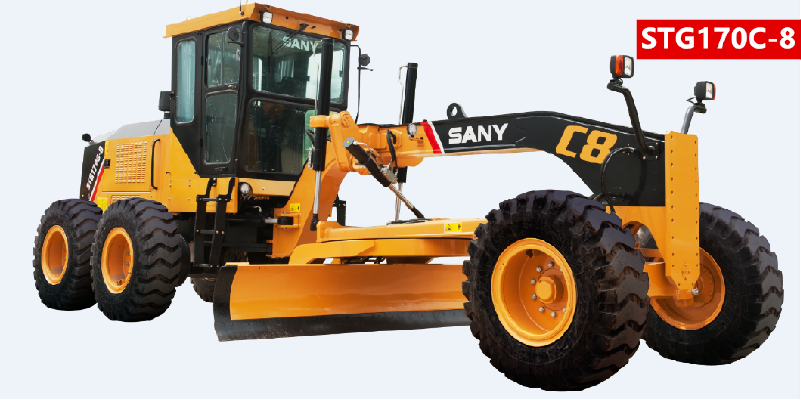

170hp Hydraulic Motor Grader STG170C-8
Excellent maneuverability
Small turning radius and its excellent maneuverability delivers versatile working performance.
Easy operation
Stepless speed, easy operation and comfortable operation environment help improve working efficiency.
Strong power
Real axle with anti-slippery NO-SPIN differential lock ensure of same rotating speed of both left and right rear drive wheels, enhancing operation power.
Reliable operating devices
Strengthened moldboard and rigid wear-resistant blade help prolong the service life.
Serviceability
Maintenance and service points are centralized positioned to facilitate maintenance.
Tiptronic Comfortable Operation Reliable and Durable
Hydraulic drive, stepless speed change, simplified operation
The highly reliable, Euro III Dongfeng engine with auto preheat German fuel injection features extremely low exhaust emissions.
The compact structure, small turning radius and big ground clearance ensures its flexibility.
Self-adaptive load control and steering technology eliminates frequent gear shifting and ensures high working efficiency.
mechanical differential technology allows an excellent anti-skid performance and powerful working ability.
The disc service brake, the normally closed friction disc parking brake and the hydraulic auxiliary brake ensure high safety.
Ground level refueling point and centralized electrical component locations are among the operator and service friendly features.
Exclusive Advisor Mr.Raymond
E-mail: sanyraymond@163.com
wechat: zirurocky
whatsapp: 86 186 6378 8576
- Place of Origin: Changsha
- Brand Name: SANY
- Model Number: STG170C-8
Model | STG170C-8 | |
Engine | Wechai | |
WP6G175E331 | ||
Tier Ⅲ | ||
Rated Power /Rev Speed | 129kW/2200rpm | |
Max. Torque/Rev Speed | 750N·m/1600rpm | |
Dimensions (Standard) | 8570x2765x3310mm | |
Operating Weight | 15000kg | |
Min. Turning Radius | 7.3m | |
Hydraulic System Max. ftessure | 18MPa | |
Transmsston System Pressure | 1.6-1.8MPa | |
Front Wheel Turning Angle | ±45° | |
Front Wheel Tit Angle | ±17° | |
Oscilation Angle of FrontAxle | ±16° | |
Oscilation Angle oflandem Box | ±15° | |
Ground Clearance at Rear Axle | 410mm | |
Blade Range | Moldboard Width x Arc Radius | (12ft)3660x620mm |
Max. Lift above Ground | 450mm | |
Max. Depth of Cut | 640mm | |
Max. Blade Pcsitcn Angle | ±90° | |
Blade Tip Range | Forward25° Backward75° | |
Circle Rotation | 360° | |
