- Place of Origin: Changsha
- Brand Name: SANY
- Model Number: STR100C-8S

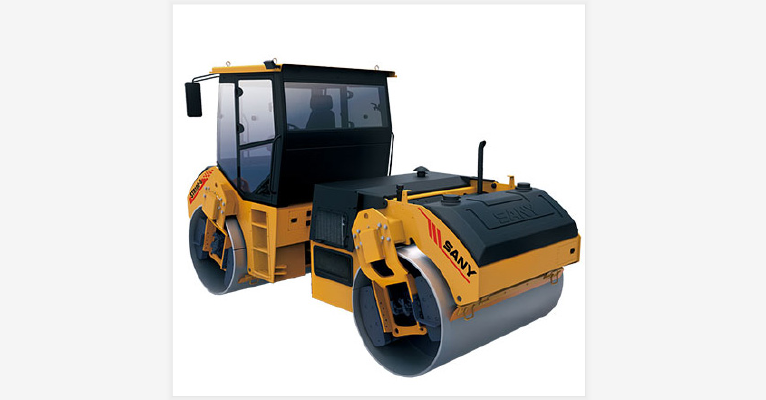

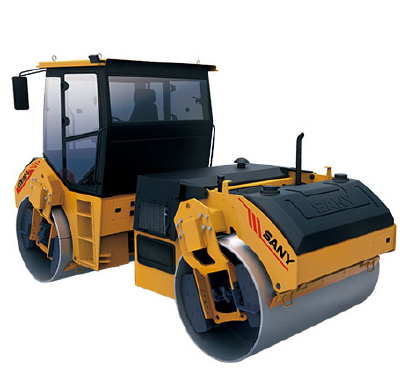

10 ton Tandem Roller STR100C-8S
Automatic Oil-spraying Technology
Pneumatic powered automatic oil-spraying prevents asphalt from sticking to the tires;
Two minutes suction refill of oil tank eliminates the manual refilling;
Eliminates the safety hazard of manually applying oil
Hydraulic Drive System
Continuously variable drive system provides smooth staring and stopping;
Controls are easy to learn and easy to operate
Automatic Inflation System
Tire pressure is adjustable from within the cab;
Even and consistent air pressure ensures compaction quality;
AIr pressure is maintained even when a tire has a slow leak
Exceptional Compaction Performance
Meeting the demands of compaction for asphalt road and cement stabilized base
Exclusive Advisor Mr.Raymond
E-mail: sanyraymond@163.com
wechat: zirurocky
whatsapp: 86 186 6378 8576
- Place of Origin: Changsha
- Brand Name: SANY
- Model Number: STR100C-8S
Types of | Double-drum |
Mass loading | Working mass: 10500 (kg) |
Rear mass distribution: 5250 (kg) | |
Wheel static linear load: 270.8 (N / cm) | |
Dispensing wheel mass: 5250 (kg) | |
Front static linear load: 270.8 (N / cm) | |
Compactor | Vibration Frequency: 40/50 (Hz) |
Exciting force: 110/80 (kN) | |
Vibratory wheel width: 1900 (mm) | |
Nominal amplitude: 0.67 / 0.305 (mm) | |
Vibration wheel diameter: 1240 (mm) | |
Drum thickness: 17 (mm) | |
Mobility | Traveling speed: 0 - 12.5 (km / h) |
Gradeability vibration theory: 30 (%) | |
The minimum ground clearance: 380 (mm) | |
Steering angle: ± 33 (°) | |
Minimum turning outer diameter: 13430 (mm) | |
Working speed: 0 ~ 7.5 (km / h) | |
Theoretical gradeability is not vibrated: 43 (%) | |
Wheelbase: 3530 (mm) | |
Swing angle: ± 8 (°) | |
Crab Distance: ± 170 (mm) | |
Volume parameter | Battery: 24 x 100(Vx Ah) |
Fuel tank: 200 (L) | |
Tank: 960 (L) | |
Hydraulic tank: 96 (L) | |
Dimensions | Overall Length: 5300 (mm) |
Overall height: 3107 (mm) | |
Overall width: 2116 (mm) |
